Parts for The Original Big Wheel "Spin-Out Racer" 16" Model #95170:

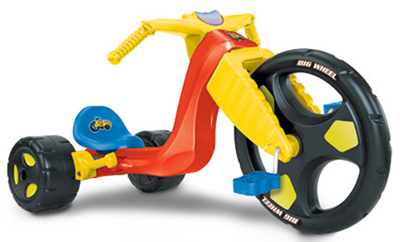

Spin-Out Racer with Hand Brake


A Handle Bar ( Yellow )
$12
B Front Fork ( Yellow )
$19
C Left Fork Cap
$3
D Right Fork Cap
$3
E Rear Axle Spacer
$3
F Front Wheel ( Black )
$19
Gb Pedals   ( 1 pair ) ( Blue )
$12
Gy Pedals   ( 1 pair ) ( Yellow )
$12
GJ Set of Pedals & Washers ( 1 pair ea)
$15
H Front Drive Axle
$8
I Front Axle Spacers  (1 pair ) *
$3
J Pedal Washers   (1 pair )
$4
K 3/4" Screws  (1 pair)
$3
K2 Screw Pack    ( 2 of each )
$4
L Left Fender (Blue)
$4
M 1 3/4" Bolt
$3
Nm 2 Metal Capnuts 3/8"  (1 pair )
$4
Np Plastic Pushnut 3/8"  (1 ea )
$3
O
Lock Nuts 1/4" (1 pair)
$4
P
Wheel Collar
$3
Q Capnut Tool
$1
R Right Fender (Blue or Yellow)
$6
S Rear Wheel   ( 1 ea )
$9
T Rear Axle 21"
$9
U
Plastic Bushing (2)
$4
V 2 1/2" Bolt
$3
W Body ( Red )
$19
Xb Seat ( Blue )
$19
Xy Seat ( Yellow )
$14
Y
Fork Plate ( Yellow )
$4
Z
Handle Bar Nut Holder ( Yellow )
$3
AA Decal Sheet
$24
BB 5/8" Capnut
$3
CC
Brake Handle ( Yellow )
$27
DD Brake Handle Back ( Yellow )
$27
EE
Brake Axle Cap ( Yellow )
$11
FF
12" Brake Axle
$17
GG 5/16" Pushnut
$3
  Deep Seat ( Lt. Blue )
$17
  Green Seat
$16
  Green Pedals
$15
  Green Rear Fender
$15
  Green Headlight
$15


* There are 2 pairs of Front Axle Spacers ( wheel inserts) per wheel (4 total).

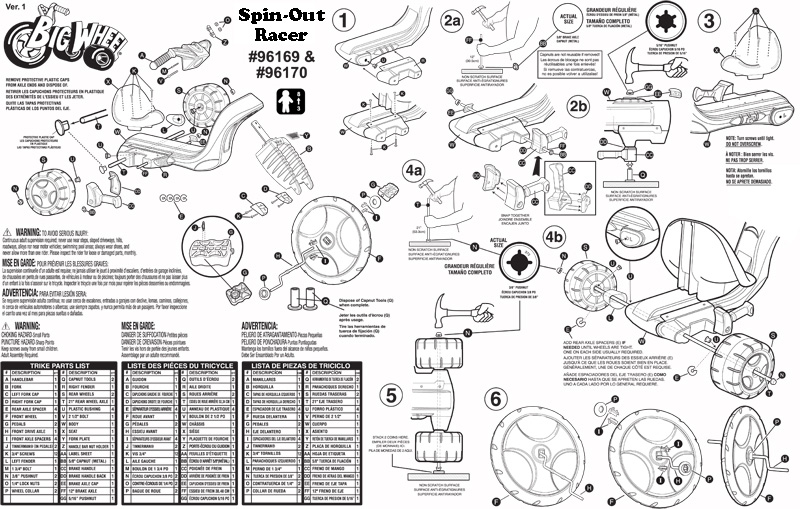

Click here to Enlarge
